sheet Bending Service
SREE nandana laser and fabrication
Advanced CNC Sheet Bending with Tight Tolerances
Our advanced CNC sheet bending service utilizes the ZYB -160T X 3200MM press brake machine, delivering high-precision bends with tight tolerances and consistent accuracy. Ideal for complex metal components, it ensures clean angles, minimal deformation, and perfect repeatability—meeting the demands of industrial, architectural, and custom fabrication projects with efficiency and quality.

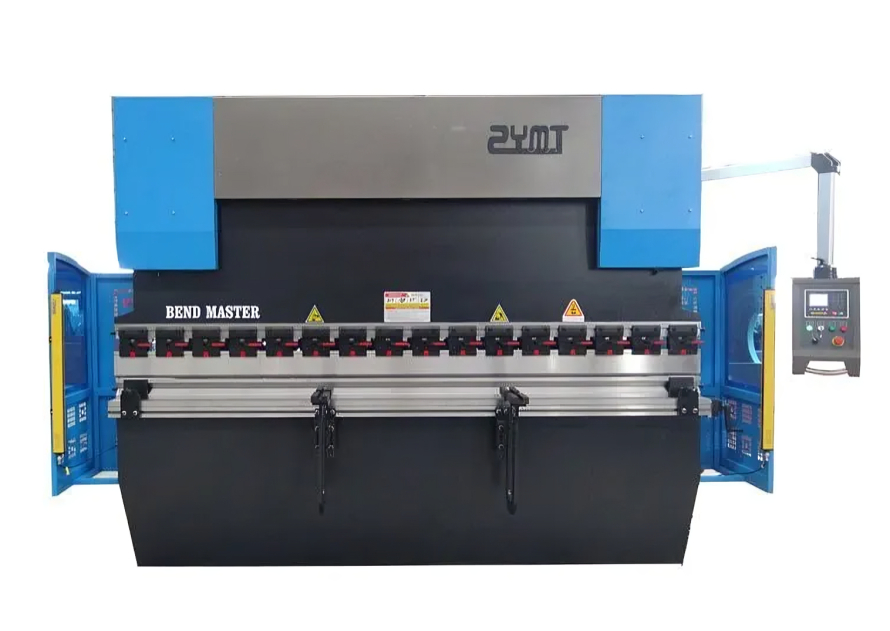

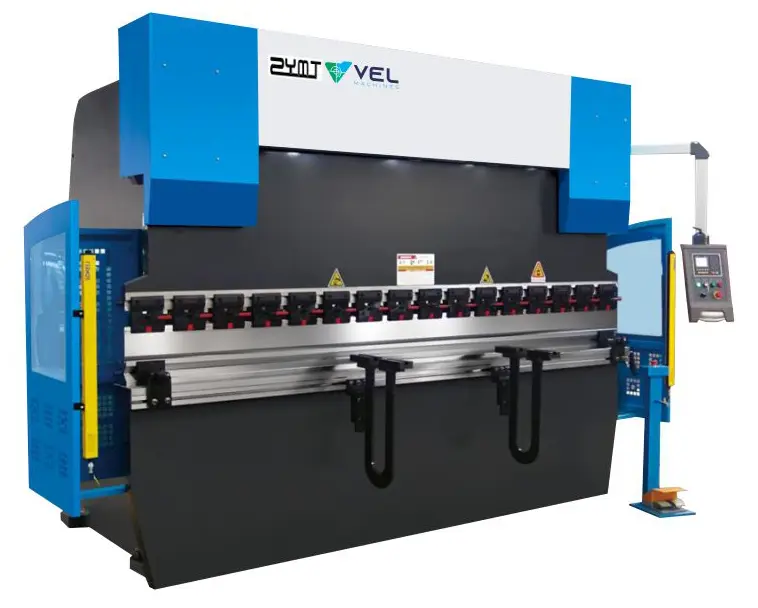

ZYB -160T X 3200MM
SREE nandana laser and fabrication
TECHNICAL PARAMETERS
| S.No | Name | Parameters ZYB -160T X 3200MM |
|---|---|---|
| 1 | Normal Force (KN) | 1600 |
| 2 | Bending Length (MM) | 3200 |
| 3 | Vertical Distance (MM) | 2700 |
| 4 | Throat Depth (MM) | 400 |
| 5 | Stroke (MM) | 200 |
| 6 | Max. Opening (MM) | 420 |
| 7 | Max. Power (KW) | 11 |
| 8 | X-Travel (MM) | 500 |
| 9 | X-Speed (MM/S) | 200 |
| 10 | Dimension L*W*H (MM) | 3500 × 1650 × 2600 |
| 11 | Approx. Weight (T) | 11 |
SREE nandana laser and fabrication
our gallery
